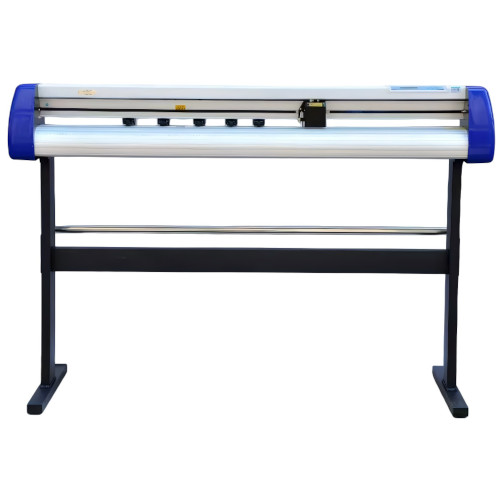

CCD Camera Automatic Edge Patrol Parameter Table
Maximum width of paper feeding:1380MM
Maximum width for regular cutting :1260MM
Maximum width for edge cutting:1200MM
Cutting length infinitely long: No limit
Bracket and height :Metal Bracket 70cm
Compatible with computer systems: Xp, Win7, Win10
Control and LED Screen: Top mounted control panel and display screen, LCD display, mechanical press keyboard
Drive mode :16 subdivision, 1.8 ° stepper motor, belt drive
Cutting speed : 1-800mm/s
Cutting pressure : 1-500g
Mechanical repeatability accuracy : 0.254mm
Data instruction : HPGL, USB offline output
Data interface : COM, USB, USB flash drive
Voltage requirement: AC90-240v (50/60Hz)
Rated power: 80w
Operating in an external environment: Temperature of 0-45 degrees Celsius and a humidity of 20-70% without condensation
Machine size (cm):150cm x 35cm x 100cm
Packaging size (cm): 161cm x 32cm x 39cm
Gross weight of equipment (kg): 26kgs
Net weight of equipment (kg): 22kgs
