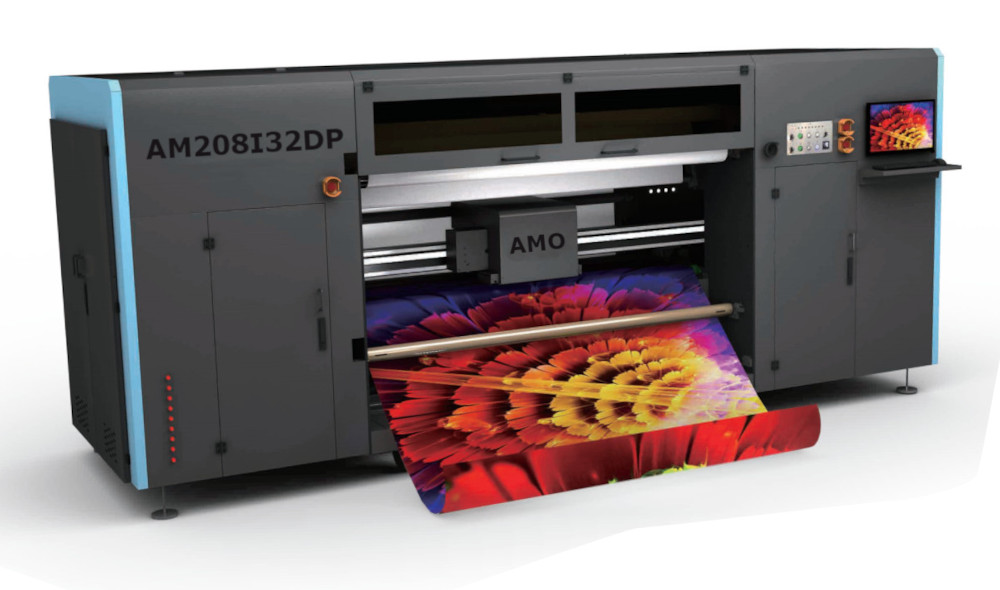

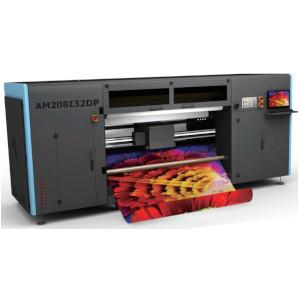

Double Side Print Inkjet Printer AM208I32DP for Textile Flag Material with 8 heads i3200
The quotation of this printer already with the color setter(big oven).
Double Sided synonymous printing.
Model: AM208I32DP
Print width 2200mm
Printhead I3200A ,8pieces（4 colors OR 8 colors）
Print resolution（weak feather)
Double sided printing
2pass（720×600） 90m2/h
3pass（360×1800） 70m2/h
4pass（720×1200） 50m2/h
Single side Printing：
2pass（720×600） 106m2/h
3pass（360×1800） 82m2/h
4pass（720×1200） 60m2/h
Ink type Disperse ink
Ink color C、M、Y、K（MAX 8 colors Optional）
RIP software Print Factory
Work environment Temp20-28℃ Humidity40-70%
Power AC380V，50/60Hz，Power supply 15KW
Dimension 4680mm× 1495mm× 1870mm（ Height 2250mm include ink bucket）
Weight 2000kg
Features of Printers
Printing platform：
Fabric guiding platform, small resistance and high precision when stepping material.
Transmission mode：
The servo motor controls the transmission rubber roller, and the material is stepped accurately, flat and wrinkle-free.
Retractable device：
The gravity roller retractable mechanism keeps the material under constant tension.
Pollution protection：
Have flying ink recycle and smoke recycle devices.
Nozzle maintenance：
automatic moisturizing, cleaning, and scraping device to prevent nozzle clogging.
Infrared drying：
High-efficiency hot air drying system to ensure high-speed printing and rewinding at the same time.
Lining paper protection：
When taking up material,lining paper can be added to prevent mutual contamination between the front and back sides.
Control system：
PLC control system to improve the stability of the system operation.
Job statistics：
The print log function automatically records and counts the printing efficiency.
Ink volume statistics：
Automatically count the ink consumption and calculate the printing cost.

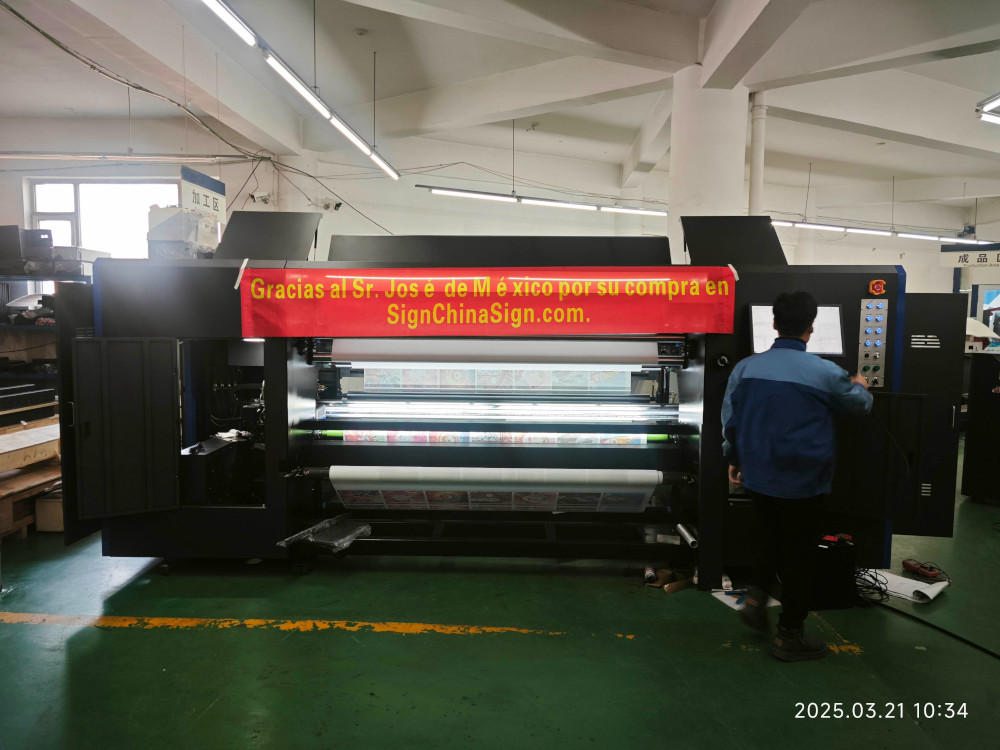

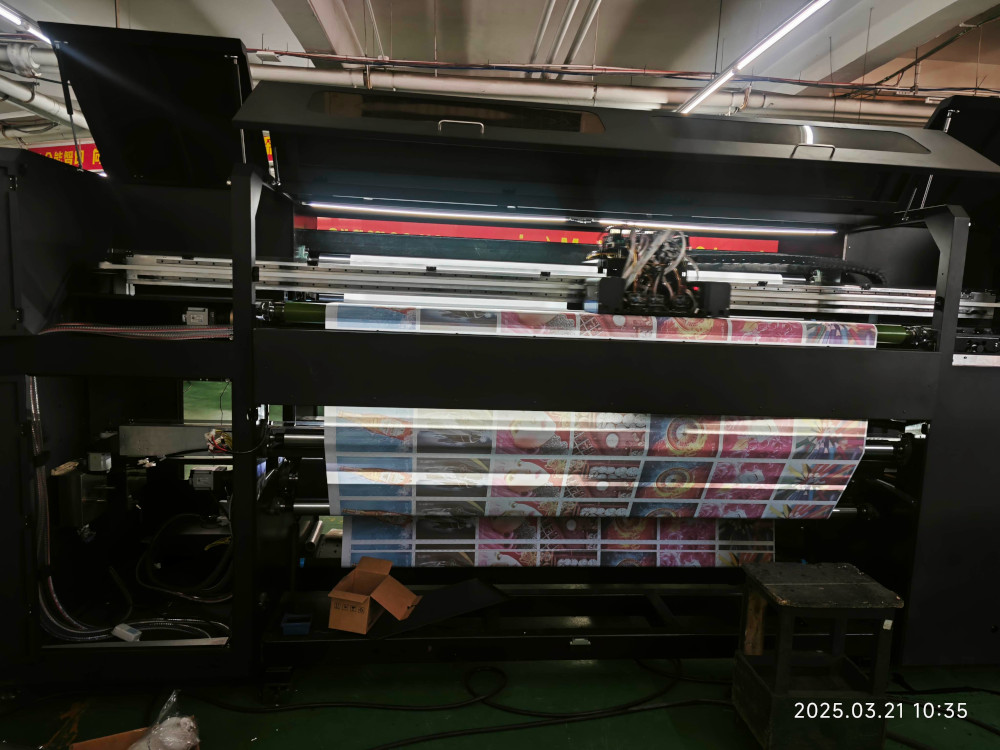

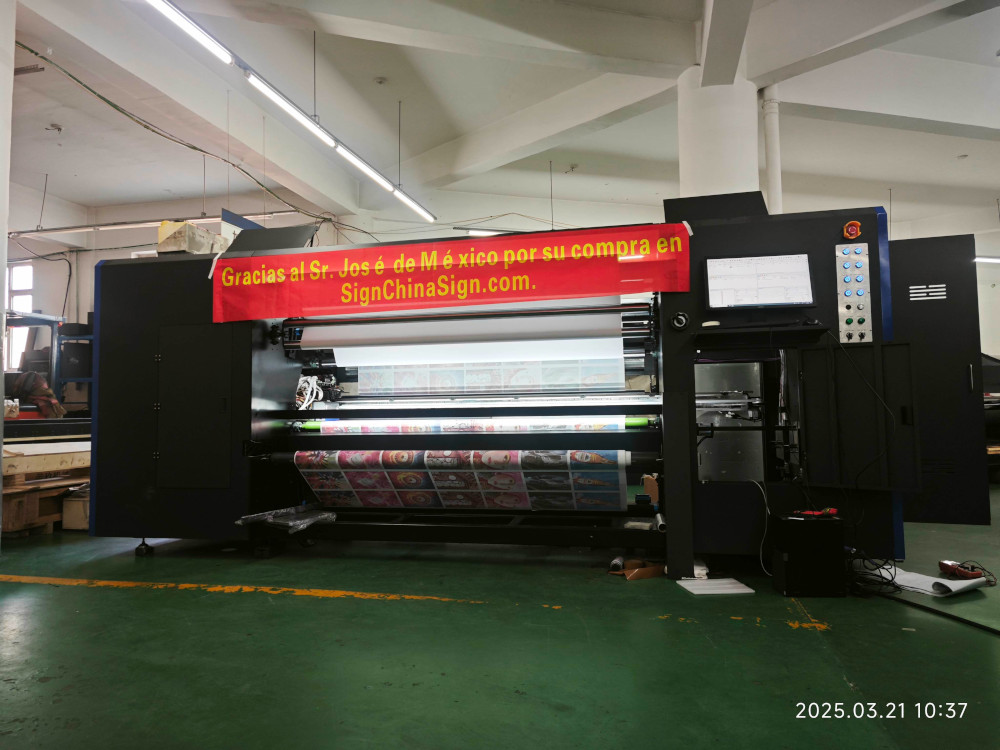

Below the newly delivery record of this inkjet printers to Mexico:

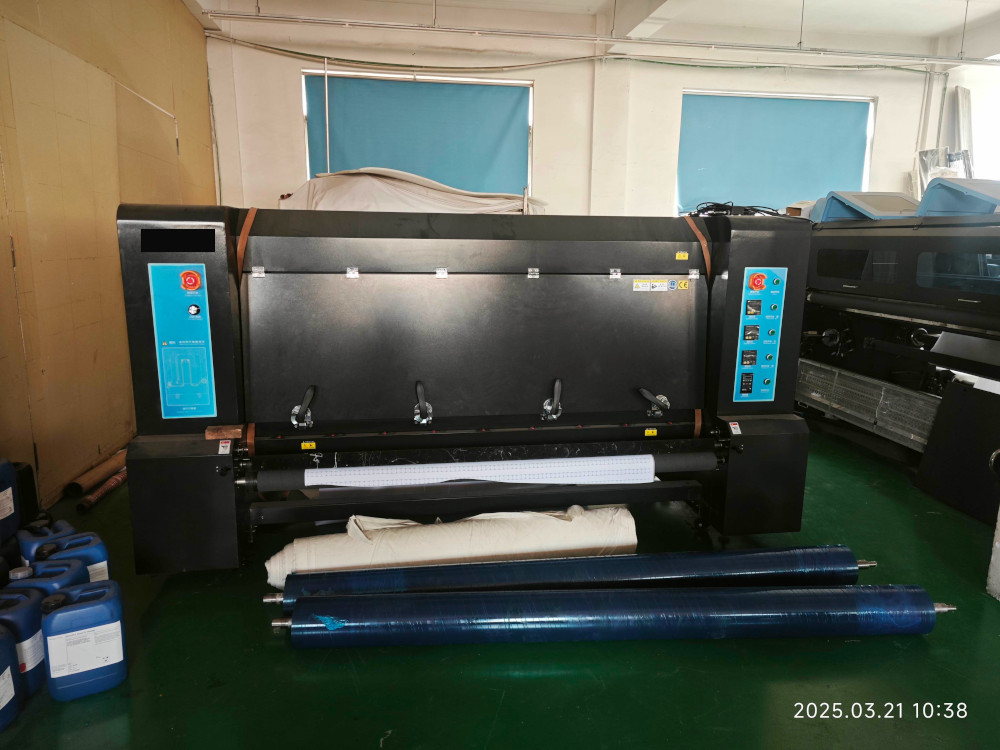

Below the oven for the print to set the color,we call it color setting or color machine,this part is included in the price:
