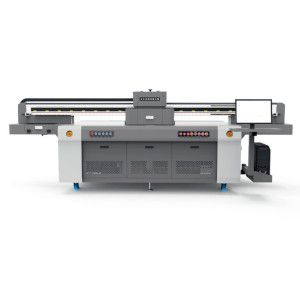

AMO UV Flatbed Inkjet Printer AM2513UVB16K24i with 16 pieces Konica KM1024i Printheads
1. Equip with 16 pcs Konica KM1024i
2.Equipped with silent linear guide rail and slider and high precision motor
3. Automatic high precision height measuring device. Equipped with anti-collision device for the printhead in 2 sides;
4. One-button automatic positioning function equipped for easier print to board of larger size, more convenient and easy to operate by one person;
5. High power electrostatic eliminator, effectively eliminate static electricity on the printing materials, eliminate static electricity caused by flying ink, or un-clearance in printing.
6. Printhead automatic flash spraying function, in standby state, the nozzles of printhead will spray every 2 hours automatically , to avoid the nozzles drying;
7.Secondary cartridge constant temperature heating function, white ink inner circulation function, prevent white ink precipitation, improve ink fluency, reduce the posibility of clogging;
8.A manual mechanical valve switch prevents ink from refluxing when the device is turned off, thereby saving more ink;
9.3-4.5Kw high power strong turbine suction fan, equipped with silencer,offer strong sucking power and lisent environment
Machine parameters
Maximum Print Width: 250cm*130cm
Print Height: 150mm to 300mm Customizable
Print Head: 16 pieces Konica KM1024i Printheads
Printing speed: 12-45m²/h
Material:It can print almost any flatbed materials ,three-dimensional,concave and convex soft and hard materials For example:
acrylic board, metal plate,glass,wood plate,ceramic floorcardboard,plastic leather, textile cloth,etc
wallpaper,PC/PE/PVC
Power: AC220/110±10.50HZ~60HZ,4500W/6000W
Machine Size / Packing Size:L4100mm*W2060mm*H1400mmL / 4360mm*W2120mm*H1610mm
Net/ Gross Weight 1550kg/1670kg
