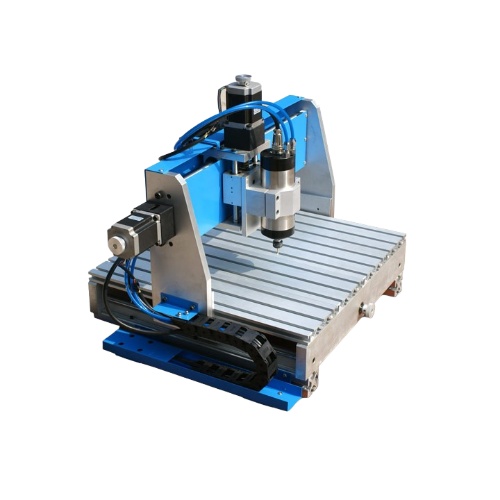

The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition, the machine can achieve the performance of good resolution and less noise with ball screw.
Model: RS-3040
X, Y, Z Guide: Rolling ball screw
Drive type: Stepper motor
X, Y, Z Work Area(mm): 385x315x55
Machine dimension(mm): 650x700x550
Max Speed: 4000mm/min
Spindle: 800W high speed
Max feeding height: 55mm
Interface: DSP handle (read USB memory directly ) / NC Studio / Mach3
Repeatability(mm): ≦ 0.0 5 mm
Command code: HPGL, G-code
Spindle tools: ф 3.175, ф 6
Power: AC220V ± 10% / 50~60Hz
Warranty: 12 Months(6 months for Spindle)
